Vertical Francis runner replacement
Northeastern United States
Project Stats
Capacity:
3 MW per unit
Head:
11 m (36 ft)
Unit diameter:
2.7 m (9 ft)
Unit type:
Fixed-pitch propeller
Blades per unit:
4
Commission date:
Feasibility study completed 2024

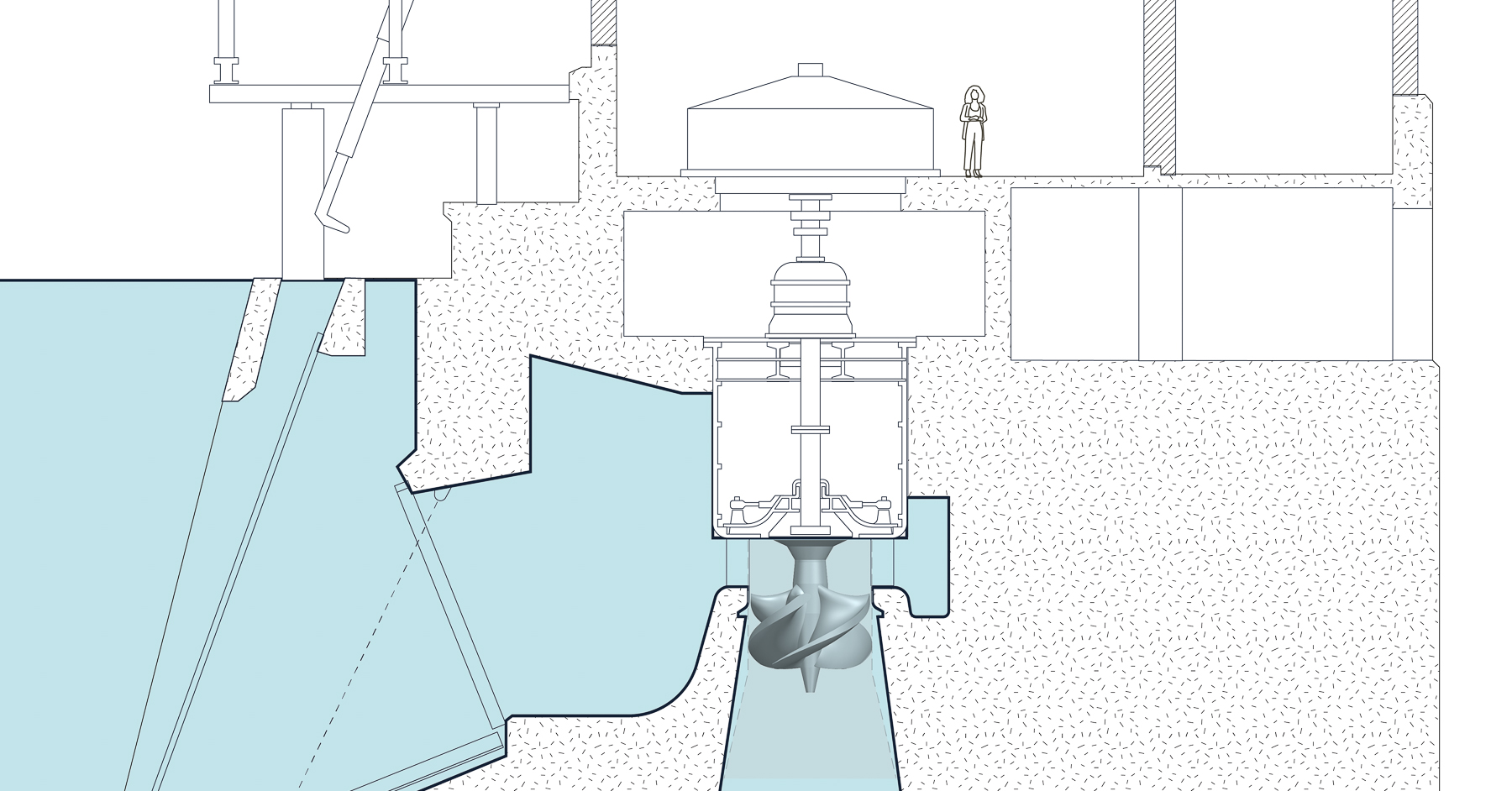

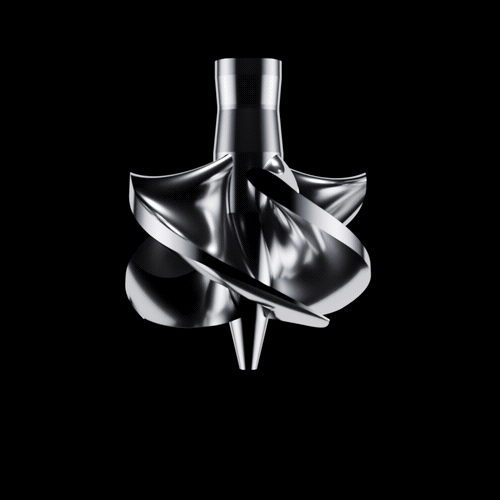

Upgrade project requiring downstream passage for eel, shad, and salmonids. This fixed pitch FishSafe™ RHT propeller unit replaces a Francis runner. Initially Natel designed a Francis-style RHT for this project but then determined that a propeller RHT design would be more effective at reducing barotrauma risk. The project with the FishSafe™ propeller unit improves fish passage and produces no change in power output.
